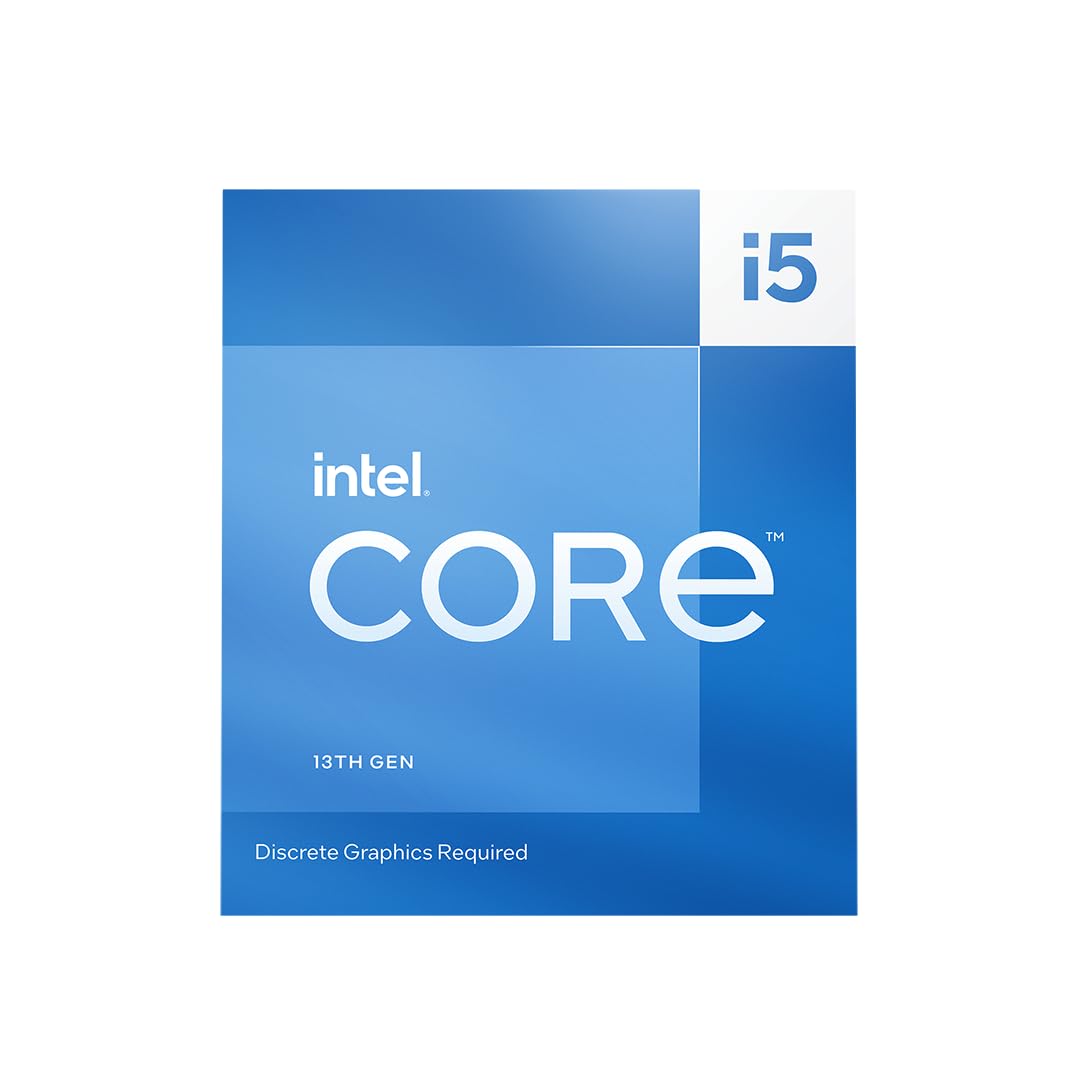

Intel processor i5-13400f

The Intel Core i5-13400F is a 13th Generation desktop processor from Intel’s Raptor Lake lineup, designed for mid-range gaming and productivity PCs. It uses the LGA 1700 socket and is built on Intel’s 10nm (Intel 7) process. Unlike the non-F variant, the i5-13400F does not include integrated graphics, requiring a discrete GPU.

Key Specifications:

•  Cores/Threads: 10 cores (6 Performance-cores + 4 Efficient-cores), 16 threads with Hyper-Threading on P-cores.

•  Clock Speeds:

•  Performance-core Base: 2.5 GHz

•  Performance-core Max Turbo: 4.6 GHz

•  Efficient-core Base: 1.8 GHz

•  Efficient-core Max Turbo: 3.3 GHz

•  Cache:

•  20 MB Intel Smart Cache (L3)

•  9.5 MB L2 Cache

•  Power:

•  Base Power (PBP): 65W

•  Maximum Turbo Power (MTP): 148W

•  Memory Support:

•  Dual-channel DDR4 (up to 3200 MHz) and DDR5 (up to 4800 MHz)

•  Max Memory Size: 128 GB

•  PCIe Lanes: 20 (16 PCIe 5.0 + 4 PCIe 4.0)

•  Chipset Compatibility: Intel 600 and 700 series chipsets

•  Architecture: Hybrid (Raptor Lake, with some chips using Alder Lake silicon)

•  Cooler: Includes Intel Laminar RM1 cooler
